SurfTrack - Measures#
Compute shape, motion, temporal, and intensity characteristics of tracked surface heatwave events. This notebook continues from the SurfTrack tracking tutorial and assumes result (the tracked labels DataArray) and var_notrend (the anomaly field) are already in memory.
1. Imports#
[1]:
import sys
import os
# Go up from notebooks/ to repo root
repo_root = os.path.abspath(os.path.join(os.getcwd(), '..'))
sys.path.insert(0, repo_root)
[3]:
# Measures sub-modules
from ocetrac.SurfTrack.measures.utils import (
ShapeMeasures,
MotionMeasures,
get_duration,
get_initial_detection_time,
calculate_intensity_metrics,
get_object_masks,
run_shape_measures,
run_motion_measures,
run_temporal_measures,
run_intensity_measures,
process_objects_and_calculate_measures,
lons_to_180,
)
from ocetrac.SurfTrack.measures.plotting import plot_displacement
2. Recap#
After running SurfTracker.run() we have:
result— DataArray (time, lat, lon) of integer event labels, NaN = backgroundvar_notrend— DataArray (time, lat, lon) of SST anomalies (fromcalculate_anomalies_trend_features)
[44]:
# All unique event IDs
event_ids = np.unique(result.values)
event_ids = event_ids[~np.isnan(event_ids)]
print(f"Total tracked events: {len(event_ids)}")
print(f"Event IDs: {event_ids[:]} ...")
Total tracked events: 60
Event IDs: [ 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18.
19. 20. 21. 22. 23. 24. 25. 26. 27. 28. 29. 30. 31. 32. 33. 34. 35. 36.
37. 38. 39. 40. 41. 42. 43. 44. 45. 46. 47. 48. 49. 50. 51. 52. 53. 54.
55. 56. 57. 58. 59. 60.] ...
[26]:
anom
[26]:
<xarray.DataArray (time: 433, lat: 138, lon: 288)> Size: 138MB
array([[[-0.38585486, -0.3697699 , -0.35270895, ..., -0.43246681,
-0.42097259, -0.40316005],
[-0.47201802, -0.46155738, -0.45422549, ..., -0.48133999,
-0.48522698, -0.48176319],
[-0.54543594, -0.54607625, -0.53813248, ..., -0.47048807,
-0.50495293, -0.53207767],
...,
[ 0.46768138, 0.43471435, 0.40061251, ..., 0.43944371,
0.50179589, 0.51046424],
[ 0.6230039 , 0.55412768, 0.49083757, ..., 0.5840006 ,
0.65754218, 0.67407608],
[ 0.79466408, 0.69131989, 0.58016453, ..., 0.78568523,
0.84079187, 0.8529317 ]],
[[-0.48895671, -0.46554217, -0.44811693, ..., -0.64097775,
-0.59068515, -0.53084162],
[-0.51441074, -0.47031967, -0.44859089, ..., -0.6258642 ,
-0.60710446, -0.57394917],
[-0.50192003, -0.46226531, -0.43666332, ..., -0.5055735 ,
-0.52035278, -0.53196638],
...
[ 0.63446571, 0.68550002, 0.72682059, ..., 0.41717646,
0.4511896 , 0.55592058],
[ 0.71495333, 0.76664366, 0.81480749, ..., 0.45474103,
0.52750041, 0.63158104],
[ 0.7618968 , 0.82198597, 0.88405636, ..., 0.50531523,
0.59544083, 0.68877213]],
[[ 0.12935723, 0.08974562, 0.03704887, ..., 0.20346442,
0.18456779, 0.16207527],
[-0.00162986, -0.02147578, -0.05354738, ..., 0.03754621,
0.02821324, 0.01754266],
[-0.15763966, -0.17312524, -0.19530826, ..., -0.12498589,
-0.13530935, -0.14498376],
...,
[ 0.29400464, 0.2701163 , 0.27314633, ..., 0.30132432,
0.32881736, 0.32516775],
[ 0.23614736, 0.24571236, 0.27539847, ..., 0.3047578 ,
0.31212475, 0.26960691],
[ 0.25130636, 0.29760109, 0.36536933, ..., 0.25533547,
0.25633358, 0.24157431]]], shape=(433, 138, 288))
Coordinates:
* time (time) object 3kB 1979-01-01 00:00:00 ... 2015-01-01 00:00:00
* lat (lat) float64 1kB -64.55 -63.61 -62.67 -61.73 ... 62.67 63.61 64.55
* lon (lon) float64 2kB 0.0 1.25 2.5 3.75 5.0 ... 355.0 356.2 357.5 358.8
Attributes:
units: K
long_name: sea surface temperature
cell_methods: time: mean3. Select a region#
[30]:
# Defining our region (Pacific Ocean)
upper_lat = 65
lower_lat = 5
left_lon = 150
right_lon = 250
result_NP = result.sel(lat=slice(lower_lat, upper_lat),
lon=slice(left_lon, right_lon))
var_notrend_NP = anom.sel(lat=slice(lower_lat, upper_lat),
lon=slice(left_lon, right_lon))
# Event IDs present in this region
ids_NP = np.unique(result_NP.values)
ids_NP = ids_NP[~np.isnan(ids_NP)]
print(f"Events in North Pacific: {ids_NP}")
Events in North Pacific: [ 6. 9. 28. 34. 38. 39. 42. 43. 48. 59.]
4. Extract one event#
get_object_masks extracts the binary mask and intensity field for a single event ID.
Returns:
event_binary— DataArray, 1 where event is present, NaN elsewhereevent_intensity— DataArray, anomaly values inside the event, NaN elsewhere
[46]:
object_id = ids_NP[5] # pick the first event in the region
print(f"Analysing event ID: {object_id}")
event_binary, event_intensity = get_object_masks(result_NP, var_notrend_NP,
object_id=object_id)
print(f"Active timesteps: {event_binary.time.shape[0]}")
print(f"event_binary dims : {event_binary.dims}")
print(f"event_intensity dims: {event_intensity.dims}")
Analysing event ID: 39.0
Active timesteps: 7
event_binary dims : ('time', 'lat', 'lon')
event_intensity dims: ('time', 'lat', 'lon')
[39]:

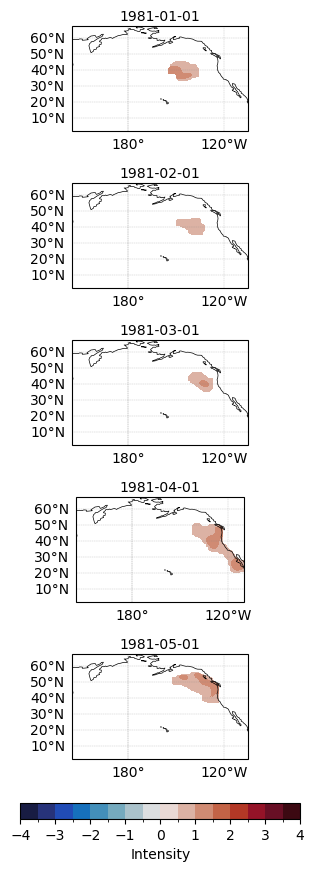

# Quick plot — event extent over first 5 active timesteps
fig, axes = plt.subplots(5, 1, figsize=(4, 8),
subplot_kw={'projection': ccrs.PlateCarree(central_longitude=180)})
axes = axes.flatten()
for i, ax in enumerate(axes[:11]):
contour = event_intensity.sel(lat=slice(-65, 65))[i,:,:].plot.contourf(
ax=ax,
transform=ccrs.PlateCarree(),
cmap=cmocean.cm.balance,
levels=17,
vmin=-4,
vmax=4,
add_colorbar=False,
extend='neither'
)
ax.add_feature(cfeature.COASTLINE, linewidth=0.5)
gl = ax.gridlines(draw_labels=True, linewidth=0.3, color='gray', alpha=0.5, linestyle='--')
gl.top_labels = False
gl.right_labels = False
time_str = str(event_intensity.time[i].values)[:10]
ax.set_title(time_str, fontsize=10, pad=4)
cbar_ax = fig.add_axes([0.15, -0.03, 0.7, 0.02]) # [left, bottom, width, height]
cbar = fig.colorbar(contour, cax=cbar_ax, orientation='horizontal')
cbar.set_label('Intensity', fontsize=10)
plt.tight_layout()
plt.show()
/glade/derecho/scratch/cassiacai/tmp/ipykernel_2931/3397323041.py:30: UserWarning: This figure includes Axes that are not compatible with tight_layout, so results might be incorrect.
plt.tight_layout()
5. Shape measures#
[40]:
lon_resolution_value = 111.320 # km per degree longitude
lat_resolution_value = 110.574 # km per degree latitude
shape_results = run_shape_measures(event_binary, lon_resolution_value, lat_resolution_value)
print(f"Max spatial extent : {shape_results['max_spatial_extent']:.0f} km²")
print(f"Mean spatial extent : {shape_results['mean_spatial_extent']:.0f} km²")
print()
print(f"Perimeters (km) : {[f'{p:.0f}' for p in shape_results['perimeters']]}")
print(f"Circularity : {[f'{c:.3f}' if c is not None else 'nan' for c in shape_results['circularity']]}")
print(f"Deformation : {[f'{d:.3f}' for d in shape_results['deformation']]}")
Max spatial extent : 3299569 km²
Mean spatial extent : 1884334 km²
Perimeters (km) : ['5923', '5105', '4884', '11333', '7764', '6712', '8042']
Circularity : ['0.555', '0.551', '0.584', '0.323', '0.506', '0.488', '0.371']
Deformation : ['0.706', '0.764', '0.787', '0.732', '0.669', '0.608']
[41]:

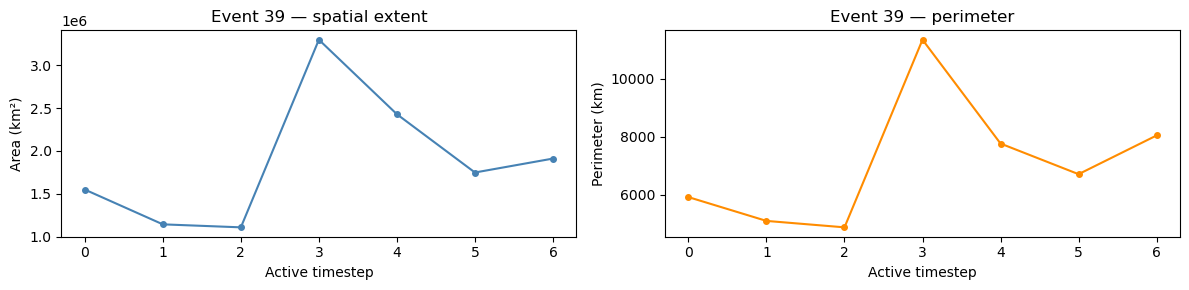

# Plot spatial extent over time
fig, axes = plt.subplots(1, 2, figsize=(12, 3))
axes[0].plot(shape_results['spatial_extents'], marker='o', ms=4, color='steelblue')
axes[0].set_xlabel('Active timestep'); axes[0].set_ylabel('Area (km²)')
axes[0].set_title(f'Event {int(object_id)} — spatial extent')
axes[1].plot(shape_results['perimeters'], marker='o', ms=4, color='darkorange')
axes[1].set_xlabel('Active timestep'); axes[1].set_ylabel('Perimeter (km)')
axes[1].set_title(f'Event {int(object_id)} — perimeter')
plt.tight_layout(); plt.show(); plt.close()
6. Motion measures#
Motion measures require longitudes in (−180, 180) format. lons_to_180 converts from (0, 360).
[42]:
# Convert longitudes for motion measures
event_binary_180 = lons_to_180(event_binary.copy())
event_intensity_180 = lons_to_180(event_intensity.copy())
motion_results = run_motion_measures(event_binary_180, event_intensity_180)
print(f"Centroids per timestep : {motion_results['num_centroids_per_timestep']}")
print(f"Centroid displacements : "
f"{[f'{d:.1f}' for d in motion_results['centroid_displacements_km']]} km")
print()
print("Centroid directionality:")
for k, v in motion_results['centroid_directionality'].items():
print(f" {k:<20} {v}")
print()
print("COM directionality:")
for k, v in motion_results['com_directionality'].items():
print(f" {k:<20} {v}")
Centroids per timestep : [1, 1, 1, 1, 1, 1, 1]
Centroid displacements : ['435.3', '531.1', '763.2', '1265.6', '531.5', '135.5'] km
Centroid directionality:
mean_delta_lon 1.884816753926702
mean_delta_lat 1.25
mean_angle 33.55211647750917
direction eastward (zonal-dominated)
movement_count 6
COM directionality:
mean_delta_lon 1.884816753926702
mean_delta_lat 1.6666666666666667
mean_angle 41.48501950343204
direction eastward (zonal-dominated)
movement_count 6
[43]:

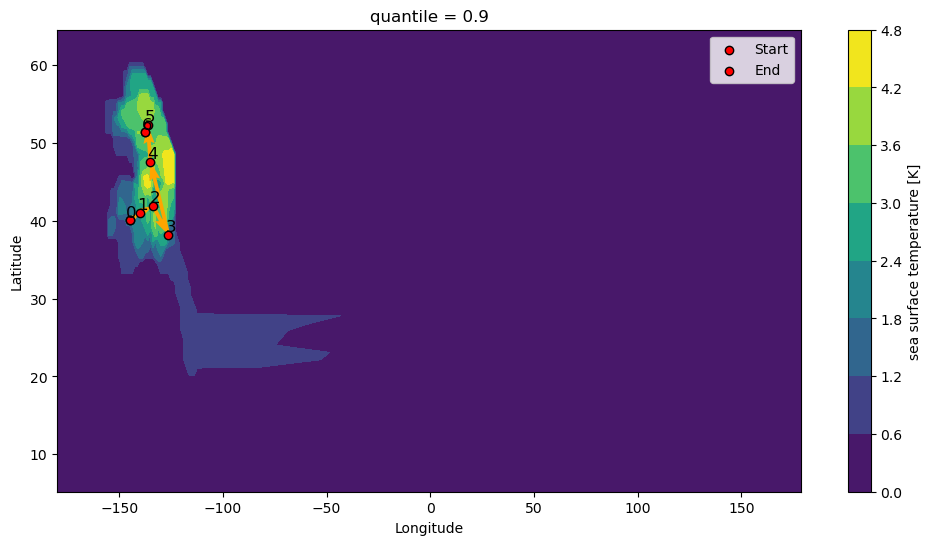

# Plot centroid displacement path
plot_displacement(motion_results['centroid_path'], event_intensity_180)
7. Temporal measures#
[47]:
temporal_results = run_temporal_measures(event_binary)
print(f"Initial detection : {temporal_results['initial_detection_date']}")
print(f"Duration : {temporal_results['duration']} timesteps")
Initial detection : 1981-01-01 00:00:00
Duration : 7 timesteps
8. Intensity measures#
[48]:
intensity_results = run_intensity_measures(event_intensity)
print(f"Max intensity : {intensity_results['max_intensity']:.4f} °C")
print(f"90th percentile (global) : "
f"{float(intensity_results['percentile_90_intensity_timeseries'].max()):.4f} °C")
# Full intensity metrics
full_metrics = calculate_intensity_metrics(event_intensity, quantile_threshold=0.9)
print()
print(f"Mean intensity : {full_metrics['mean_intensity']:.4f} °C")
print(f"Std intensity : {full_metrics['std_intensity']:.4f} °C")
Max intensity : 1.5718 °C
90th percentile (global) : 1.3864 °C
Mean intensity : 0.9667 °C
Std intensity : 0.1835 °C

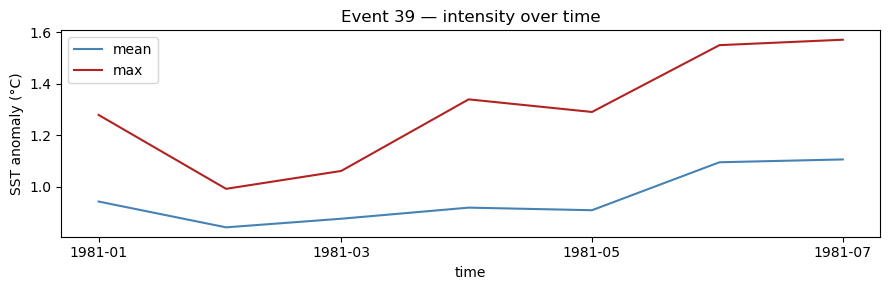

[49]:
fig, ax = plt.subplots(figsize=(9, 3))
full_metrics['mean_intensity_timeseries'].plot(ax=ax, label='mean', color='steelblue')
full_metrics['max_intensity_timeseries'].plot(ax=ax, label='max', color='firebrick')
ax.set_title(f'Event {int(object_id)} — intensity over time')
ax.set_ylabel('SST anomaly (°C)')
ax.legend(); plt.tight_layout(); plt.show(); plt.close()
9. One event, all measures at once#
Use the convenience wrappers to run all measure groups in a single call.
[50]:
measure_results = {}
event_binary, event_intensity = get_object_masks(result_NP, var_notrend_NP,
object_id=object_id)
event_binary_180 = lons_to_180(event_binary.copy())
event_intensity_180 = lons_to_180(event_intensity.copy())
measure_results['shape_measures'] = run_shape_measures(
event_binary, lon_resolution_value, lat_resolution_value)
measure_results['motion_measures'] = run_motion_measures(
event_binary_180, event_intensity_180)
measure_results['temporal_measures'] = run_temporal_measures(event_binary)
measure_results['intensity_measures'] = run_intensity_measures(event_intensity)
print("All measures computed for event", int(object_id))
print("Keys:", list(measure_results.keys()))
All measures computed for event 39
Keys: ['shape_measures', 'motion_measures', 'temporal_measures', 'intensity_measures']
10. Multiple events, multiple measures#
process_objects_and_calculate_measures loops over a list of event IDs and returns a nested dict keyed by event ID. Individual measure groups can be switched on/off with boolean flags.
[51]:
my_object_ids = list(ids_NP[:3]) # first 3 events in the North Pacific
print("Processing event IDs:", my_object_ids)
results_multi = process_objects_and_calculate_measures(
my_object_ids,
blobs = result_NP,
var_notrend = var_notrend_NP,
run_shape = True,
run_motion = False, # turn off motion for speed
run_temporal = True,
run_intensity = True,
lon_resolution_value = lon_resolution_value,
lat_resolution_value = lat_resolution_value,
)
Processing event IDs: [np.float64(6.0), np.float64(9.0), np.float64(28.0)]
Shape Measures complete.
Temporal Measures complete.
Intensity Measures complete.
Shape Measures complete.
Temporal Measures complete.
Intensity Measures complete.
Shape Measures complete.
Temporal Measures complete.
Intensity Measures complete.
[52]:
# Summary table
print(f"{'Event ID':<12} {'Duration':>10} {'Max area (km²)':>16} {'Max intensity':>15}")
print("-" * 56)
for eid, res in results_multi.items():
dur = res['temporal_measures']['duration']
maxarea = res['shape_measures']['max_spatial_extent']
maxint = res['intensity_measures']['max_intensity']
print(f"{int(eid):<12} {dur:>10} {maxarea:>16.0f} {maxint:>15.4f}")
Event ID Duration Max area (km²) Max intensity
--------------------------------------------------------
6 22 9613349 4.1525
9 4 2002339 2.9356
28 3 110139 0.7067

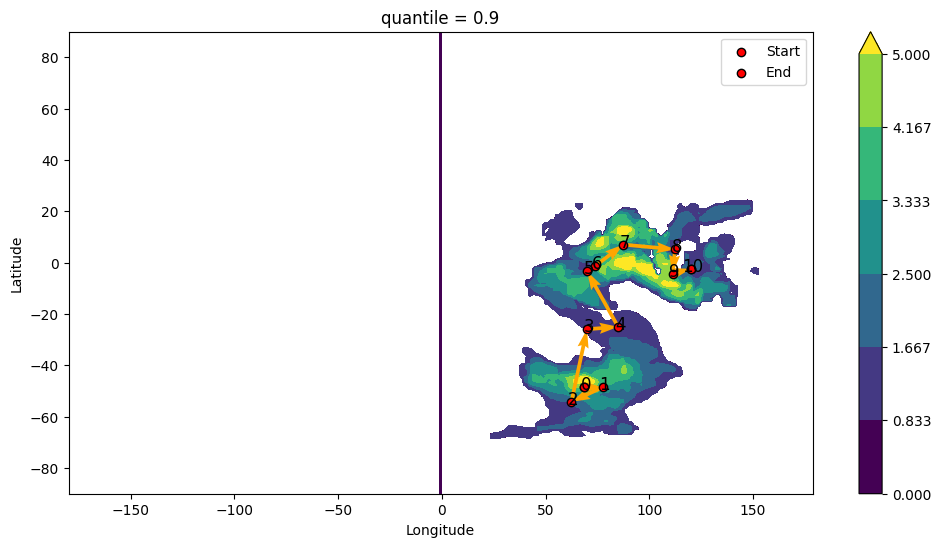

Example of a previous event has a centroid that moves more#
[70]:
plot_displacement(centroid_path, event_intensity)
[ ]:
